Discovery Behaviors and Functionality Definitions

4 min read
On this page

In this lesson, you will learn:

  • What a behavior is
  • What functionality definitions do
  • When SNWR uses a behavior

🔁 Quick look back: Last time: Guided Setup and Discovery Properties. You learned how guided setup and a few properties set up Discovery.

1 The Problem: The Wrong MID Server Runs Part of a Scan

A London scan used snwr-mid-lon-01 for scanning, but a Mumbai MID Server for some Windows work. So:

  • Traffic crossed the WAN.
  • Firewall rules didn’t allow it, and parts failed.

🎯 The problem: The wrong MID Server ran part of the scan.

👉 The fix: Use a behavior to say which MID Servers do which work.

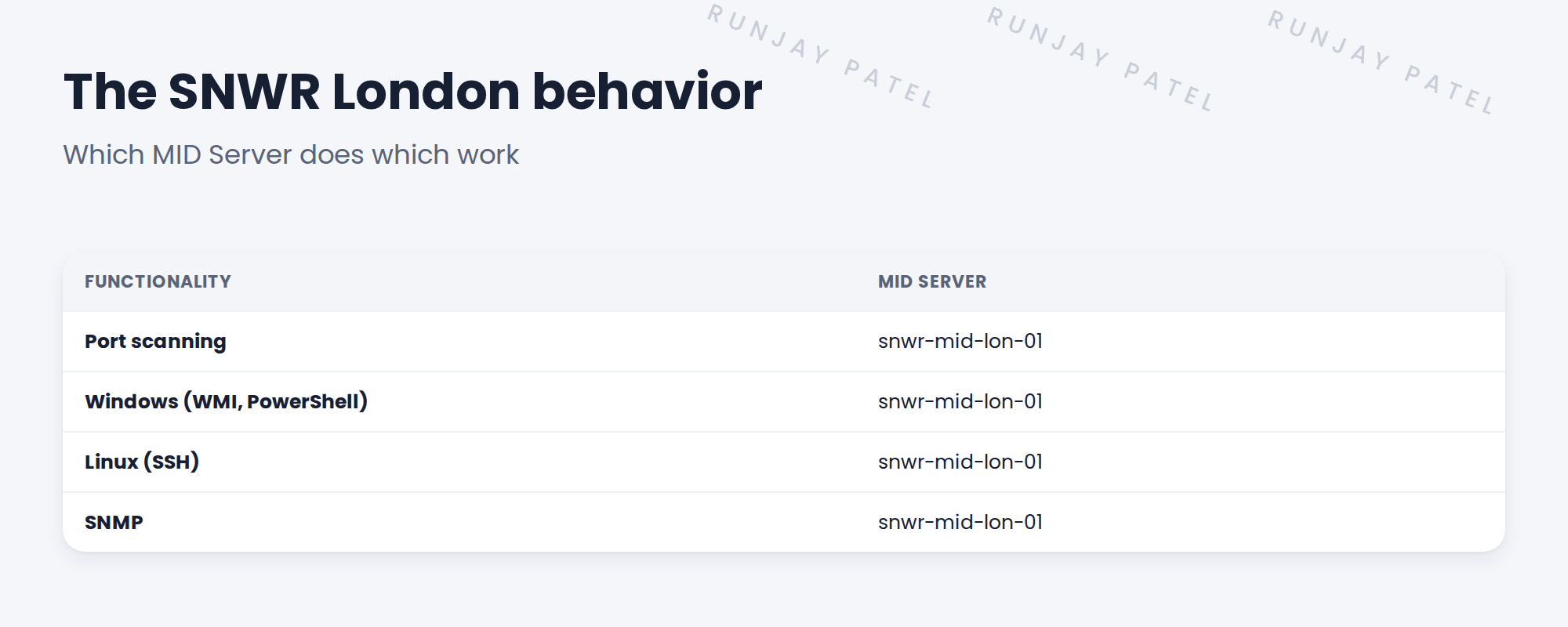

Table showing the SNWR London behavior.
Figure 1. The ‘SNWR London’ behavior.

2 Behaviors in plain words

Key term: Behavior

A set of rules saying which MID Servers run which kinds of work in a schedule.

Key term: Functionality definition

One kind of work, such as SSH or WMI, and the MID Servers that do it.

A schedule can use a behavior instead of letting each step pick a MID Server.

3 When to use one

  • Different protocols must use different MID Servers.
  • A site must keep all work on its own MID Server.
  • You need full control of which MID does what.

💡 Good to know: If auto-select already picks correctly, you may not need a behavior. Keep it simple.

4 Project Clear View: How We Implemented It

📍 Situation: Part of a London test used a Mumbai MID Server.

🧭 Decision: Create the ‘SNWR London’ behavior and use it in the London schedule.

🛠️ Steps we took:

  1. Created the behavior with one functionality per protocol.
  2. Pointed each to snwr-mid-lon-01.
  3. Set SNWR London Servers Nightly to use it.
  4. Reran the London test.

✅ What we verified:

  • All London work ran on snwr-mid-lon-01.
  • No traffic crossed the WAN.

📁 Evidence: The SNWR London behavior, listed in the migration matrix.

5 Quick recap

  • A behavior says which MID Servers do which work.
  • A functionality definition is one kind of work.
  • Use behaviors when protocols or sites need specific MID Servers.
  • Keep it simple if auto-select works.

6 Check yourself

Think of your answer first. Then tap to check.

1 What is a behavior? Show answer

A set of rules saying which MID Servers run which kinds of work in a schedule.

2 Why did SNWR need the London behavior? Show answer

Some London work ran on a Mumbai MID Server and crossed the WAN.

3 Do you always need a behavior? Show answer

No. If auto-select picks correctly, you may not need one.

Nice work! SNWR’s London scans stay in London. 🎉
Next up: IP Services and Port Probes
