A business rule is a server-side script that runs when a record is displayed, inserted, updated, or deleted, or when a table is queried. We use business rules to achieve tasks such as create events for email notifications and script actions.

Business Rule overview

What is business rule?

A business rule is a server-side script that runs when a record is displayed, inserted, updated, or deleted, or when a table is queried.

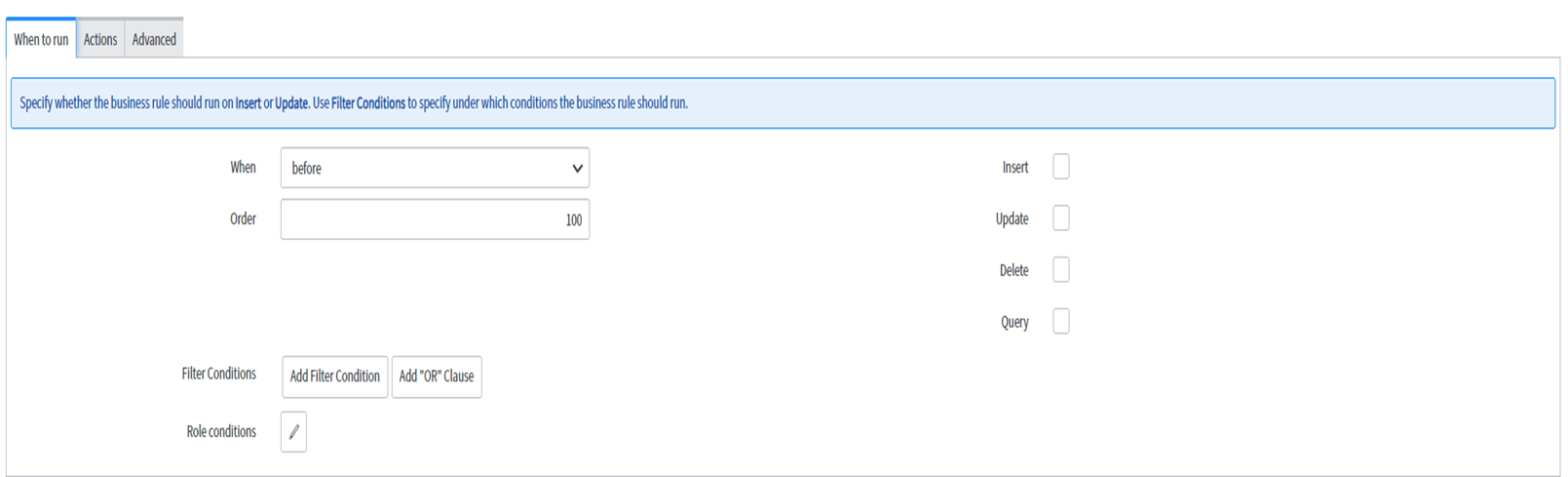

When business rules run

Business rules run based on two sets of criteria:

• • The time that the business rule is configured to run relative to a record being modified or accessed.
  • The database operation that the system takes on the record.



How to navigate to business rule in ServiceNow

1. 1. Go to System Definitions > Business Rules.
   2. Click New.
   3. Fill in the fields, as appropriate.

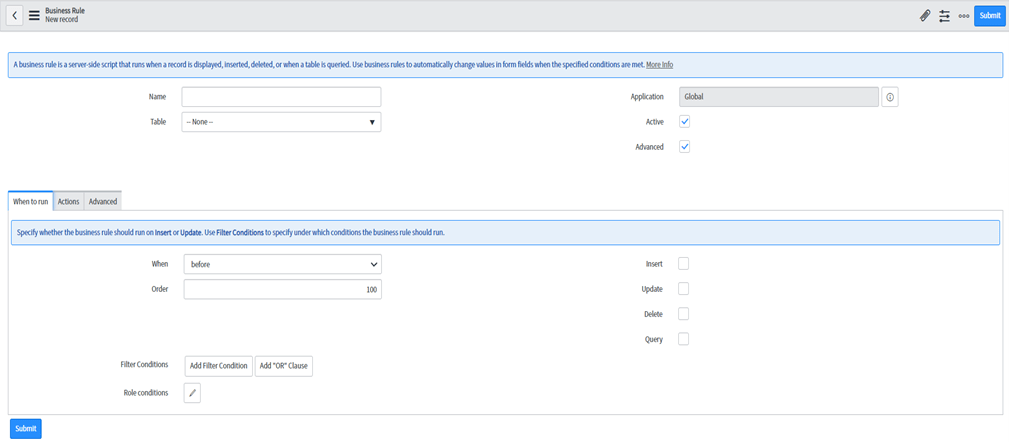

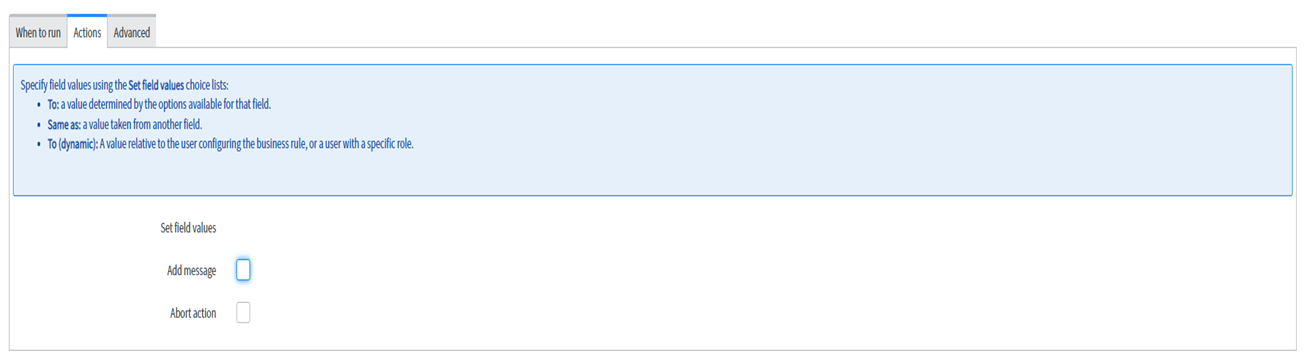

Let’s have a closer look on the business rule form and see the purpose of each field.

Field on form	Illustration
Name	Enter the name for your business rule. Try to keep it simple and specific.
Table	Select the table from the list provided in the drop down.
Application	Application that contains this business rule.
Active	Enable of disable your BR using this option.

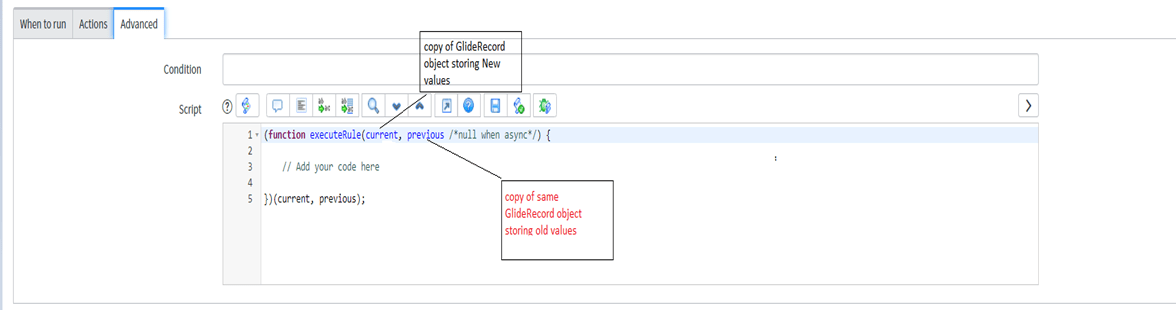

Advanced	This helps to see the advanced version of the form.





Types of business rules in ServiceNow

We have four different type of business rules present in our system.

1. 1. Before
   2. After
   3. Async
   4. Display

Let’s understand each one of them in detail

Before business rule

Before BR as name itself justify works Before a record is saved to the database. Business rules execute after form submission and before the record update in the database. It runs before the database operation, so no extra operations are required.

As shown in the figure above the user provides an input before BR is executed and then only changes are made to the database.

Scenario – We need to copy the short description from variable present on RITM to the short description of catalog task.

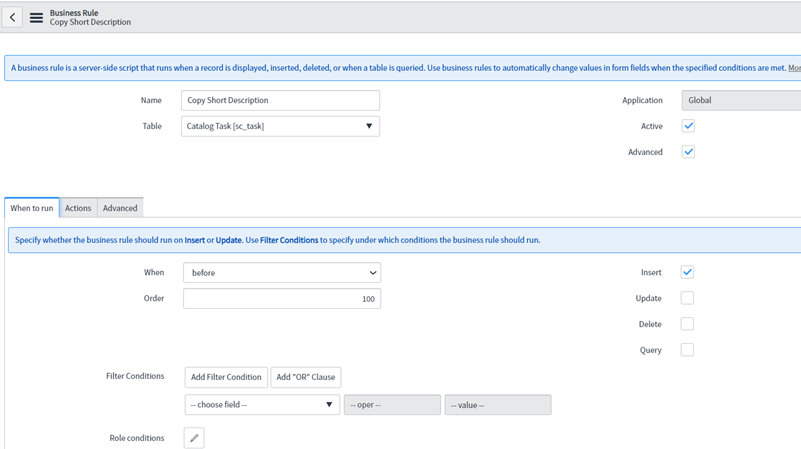

We will start by creating a new Before BR filling all the required fields.

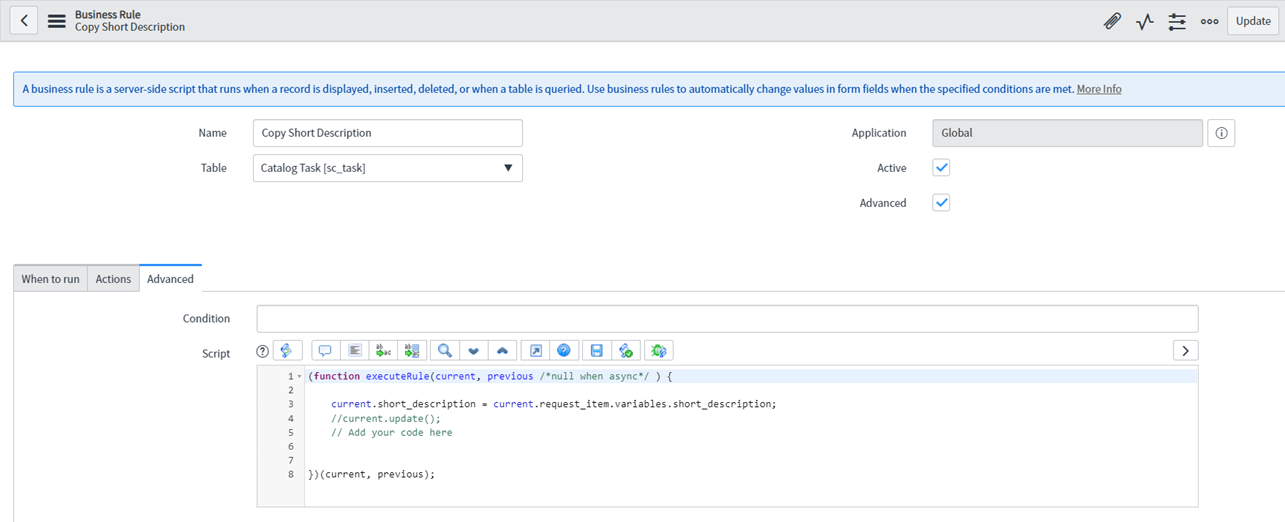

Here is the script to achieve the above-mentioned scenario.

(function executeRule(current, previous /*null when async*/ ) {

    current.short_description = current.request_item.variables.short_description;

    // Add your code here


})(current, previous);

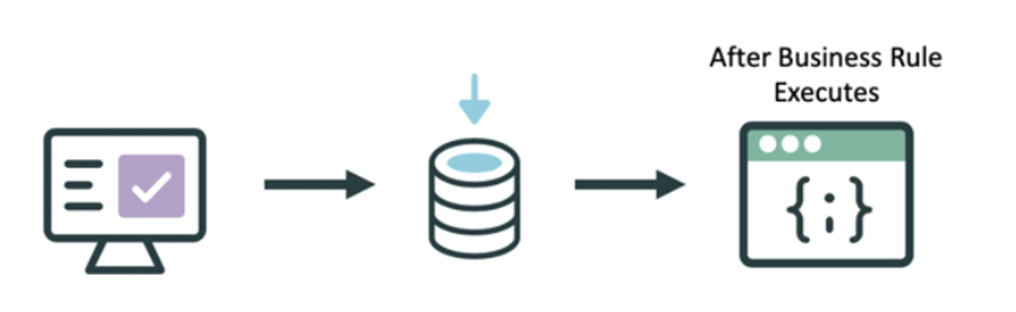

After business rule

After a record is saved to the database. Business Rules execute after form submission and after the record update in the database.

Scenario – We need to close the task if the respective RITM moves to Closed incomplete.

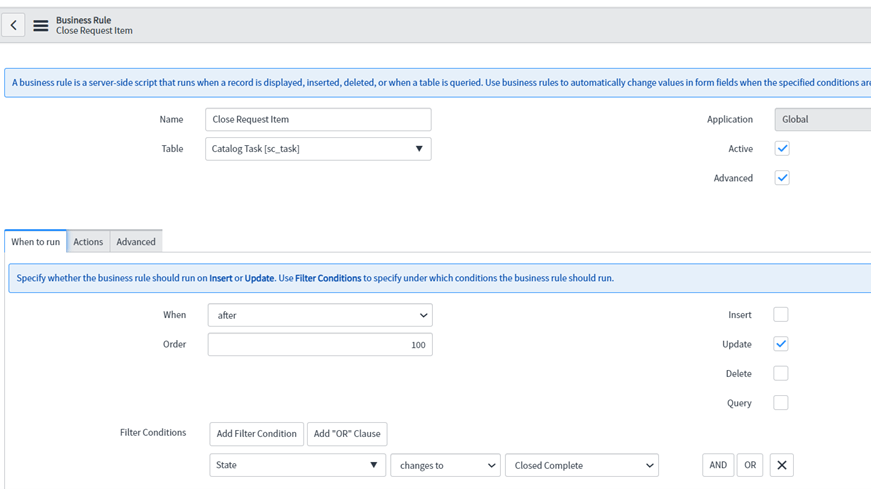

We will start by creating a new After BR filling all the required fields.

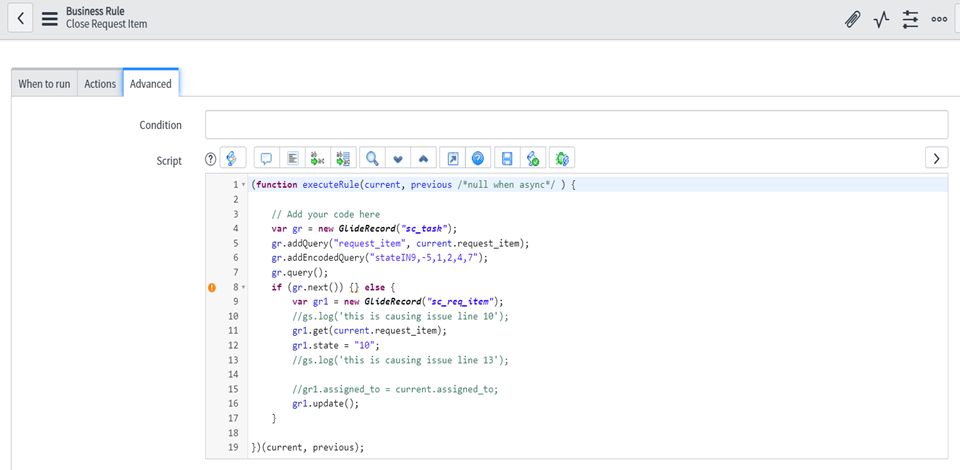

Here is the script to achieve the above-mentioned scenario.

(function executeRule(current, previous /*null when async*/ ) {

    // Add your code here
    var gr = new GlideRecord("sc_task");
    gr.addQuery("request_item", current.request_item);
    gr.addEncodedQuery("stateIN9,-5,1,2,4,7");
    gr.query();
    if (gr.next()) {} else {
        var gr1 = new GlideRecord("sc_req_item");
        gr1.get(current.request_item);
        gr1.state = "10";
        gr1.update();
    }

})(current, previous);

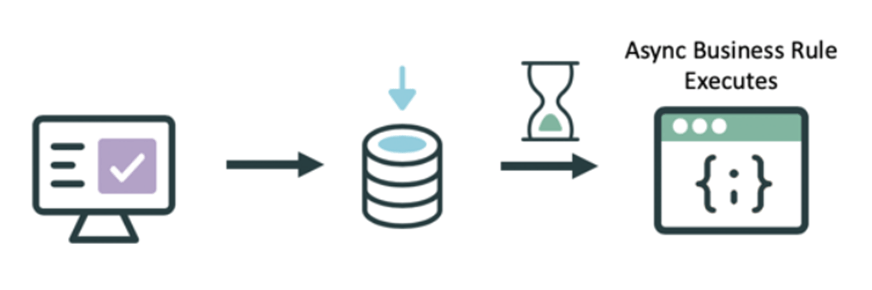

Async business rule

Async Business Rules run after records are inserted/modified/queried. Async and after works similar the only difference is async run asynchronously as Scheduled Jobs. Async BR are queued by the scheduler to run as soon as they can be fit in. This allows the current transaction to finish without waiting for the rule and give the control back to user to continue working.

Scenario: Attachment add to a particular variable in a certain catalog item should get attach to the record as well.

We all are aware that attachment made to a variable in any catalog item is not attached to the record itself and make it somehow difficult to send the same attachment via notification for the respective record. So, to achieve the same we are using Async Business Rule. Now, why async not after BR the answer is attachment might take time to get attach to the record so to make this smooth and without blocking user experience, we will be using this.

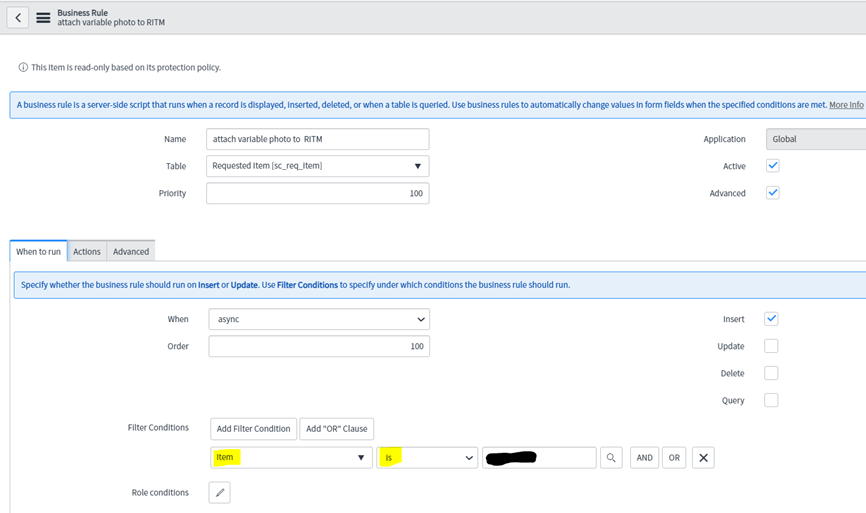

We will start by creating a new Async BR filling all the required fields, here we want this BR for a particular catalog item, so we are mentioning the same under filter conditions.

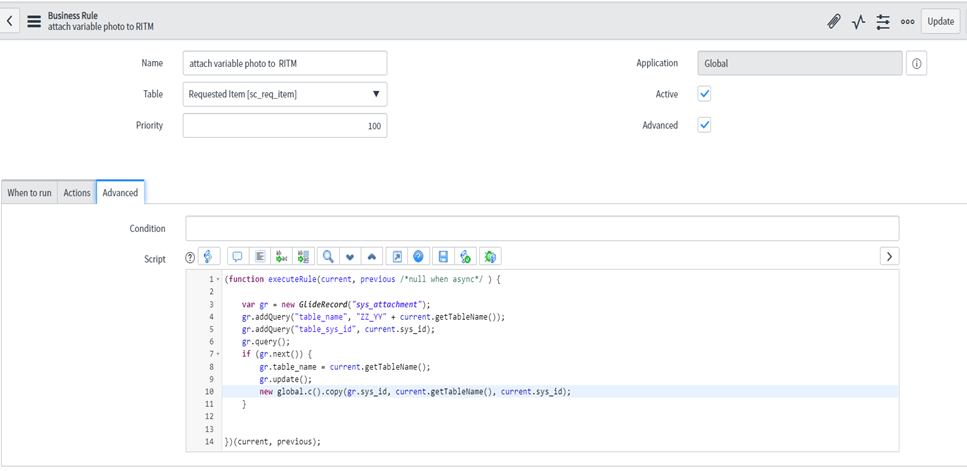

Here is the script to achieve the above-mentioned scenario.

(function executeRule(current, previous /*null when async*/ ) {

    var gr = new GlideRecord("sys_attachment");
    gr.addQuery("table_name", "ZZ_YY" + current.getTableName());
    gr.addQuery("table_sys_id", current.sys_id);
    gr.query();
    if (gr.next()) {
        gr.table_name = current.getTableName();
        gr.update();
        new global.VariableUtil().copy(gr.sys_id, current.getTableName(), current.sys_id);
    }


})(current, previous);

Display business rule

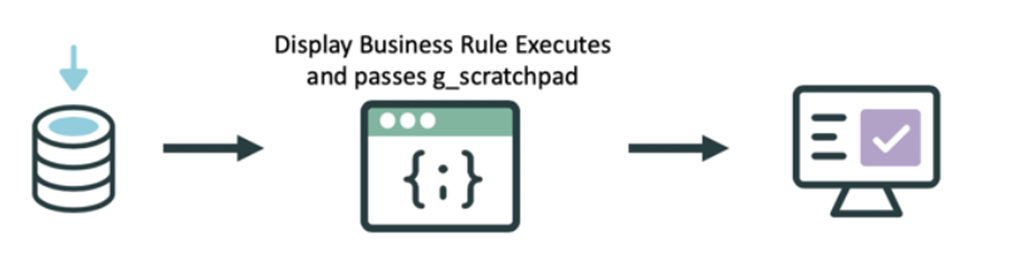

Display Business Rules run after the data is read from the database and before the form is presented back to the user. Display Business Rules execute when a user requests a record form.

Scenario – We need to set certain values on incident form if the logged in user is member of a particular group.

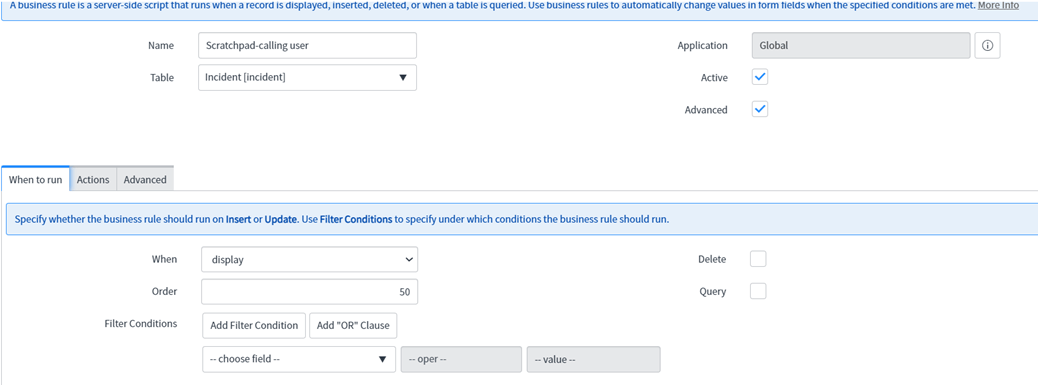

To achieve this use case, we first need to create a Display BR and then call the same in our client script. Please refer to the below attached screenshots.

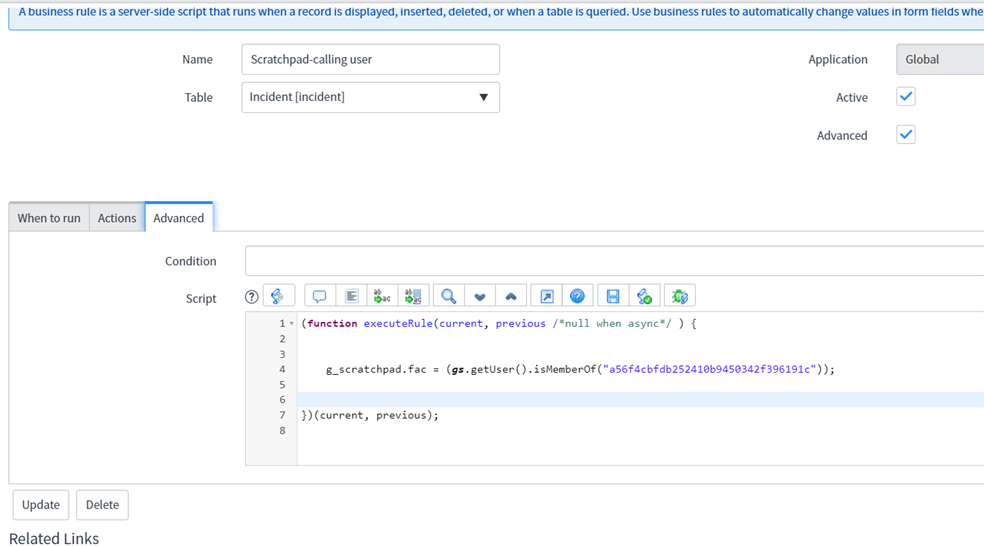

Here is the BR to fulfil our work at server side.

(function executeRule(current, previous /*null when async*/ ) {


    g_scratchpad.fac = (gs.getUser().isMemberOf("a56f4cbfdb252410b9450342f396191c"));

})(current, previous);

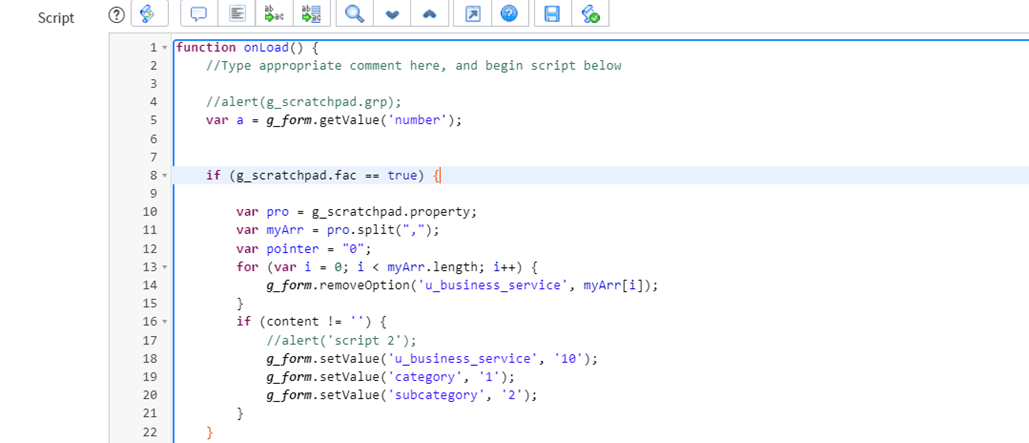

Now, moving onto the client-side scripting to see how this g_scratchpad is called, and our requirement is achieved.



function onLoad() {
    //Type appropriate comment here, and begin script below

    var a = g_form.getValue('number');
    if (g_scratchpad.fac == true) {

        var pro = g_scratchpad.property;
        var myArr = pro.split(",");
        var pointer = "0";
        for (var i = 0; i < myArr.length; i++) {
            g_form.removeOption('u_business_service', myArr[i]);
        }
        if (content != '') {
            //alert('script 2');
            g_form.setValue('u_business_service', '10’);
            g_form.setValue('category', '1');
            g_form.setValue('subcategory', '2');
        }
    }



Before Query Business rule

Other than the four above mentioned rules we have Before Query rule. It is a type of business rule in ServiceNow that we can use to limit that what all records users can access from a given table. In other words, we can also say that it is used for data segregation on an instance. To understand this more clearly see the scenario mentioned below.

Scenario – We need to restrict the visibility of incident on our instance in such as way that user should only be able to view them if he is a part of the assignment group to which that incident is being assigned or is the caller for that incident.

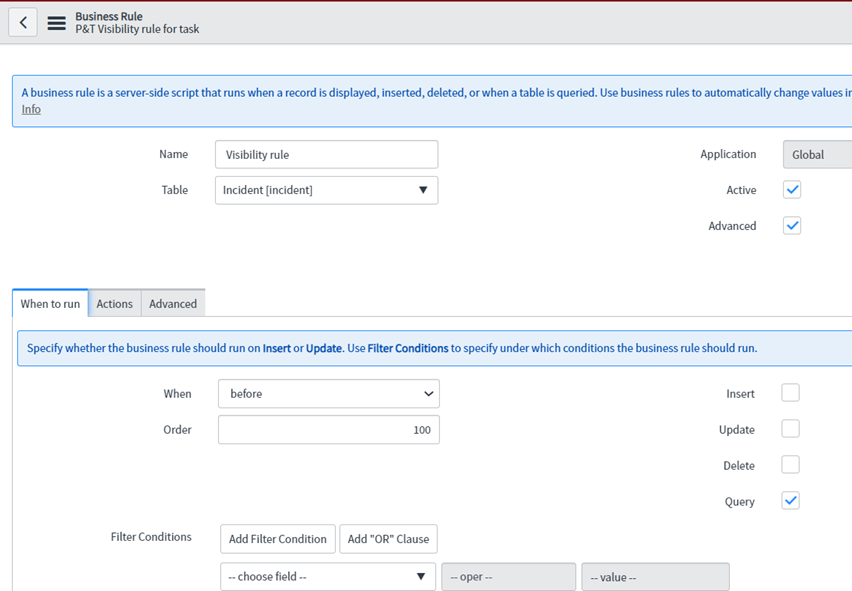

We will start by creating a new Before BR and selecting the query operation then filling all the required fields.

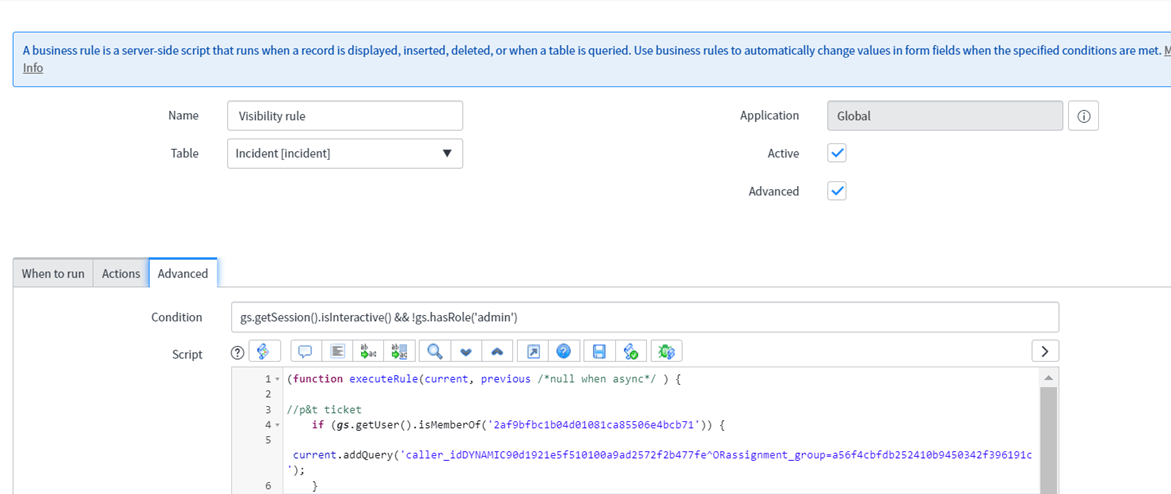

Here is the script to achieve the above-mentioned scenario. In this you can see we have used the condition under advanced section to disable this rule if the user is ‘admin’.

//Condition - gs.getSession().isInteractive() && !gs.hasRole('admin')

Script - (function executeRule(current, previous /*null when async*/ ) {

    if (gs.getUser().isMemberOf('2af9bfbc1b04d01081ca85506e4bcb71')) {
        current.addQuery('caller_idDYNAMIC90d1921e5f510100a9ad2572f2b477fe^ORassignment_group=a56f4cbfdb252410b9450342f396191c');
    }

Why should we use Before Query instead of ACL?

With the concept of before query first question which comes to our mind is that why we actual need this when we have ACL for restricting any kind of record in system. The answer is when Query BR restrict the access than user will not see any message at the bottom of page related to access restriction but if the same record is restricted from ACL than message such as “Numbers of rows removed from the list by Security constraints: 20” displayed to user.

So, for smoothening the user experience query BR is preferred over ACL.

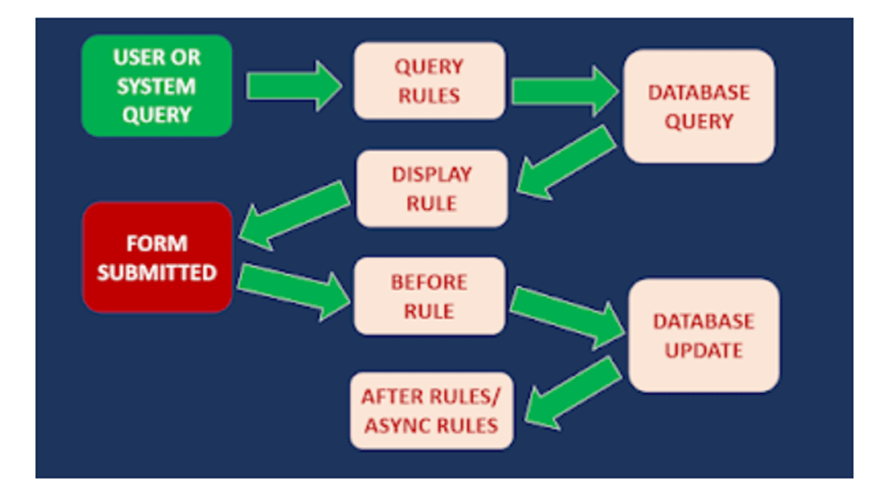

Order of execution of different Business Rules

The above image show use how database is being updated once something is entered by user. We can clearly see the execution order of the different business rule and how they work one by one based on the conditions and operation selected.

QUERY > DISPLAY > BEFORE > AFTER

This is in simple words to make you understand the flow. First, the query rule runs to restrict the access of the data being presented to the user. Then the display rule is executed. After that Scripts are configured to execute before the database operation works. And finally, async and after is carried out.

Best practices for a Business Rule

1. 1. Prevent recursive business rules – We should avoid using update() in a business rule script. The update() method triggers business rules to run on the same table for insert and update operations, leading to a business rule calling itself over and over.
   2. Enclose your script in functions – We should always enclose our script in functions because when a code is not enclosed inn functions it is available to all server side scripts.
   3. Write specific business rule – Always avoid writing complex rules as they will be difficult to debug.
   4. Know when to run business rule – There should be clarity about when to use Business Rule and specify the same in conditions for running your BR.

Advantage vs disadvantage

Advantage

• • Performance. When running code on the server, it often has a faster load time and   processing time than a client script.

• • Can perform complex database lookups.

• • Can dot-walk many levels, however three levels is often a recommend maximum.

Disadvantage

• • They are not as user friendly as client scripts.
